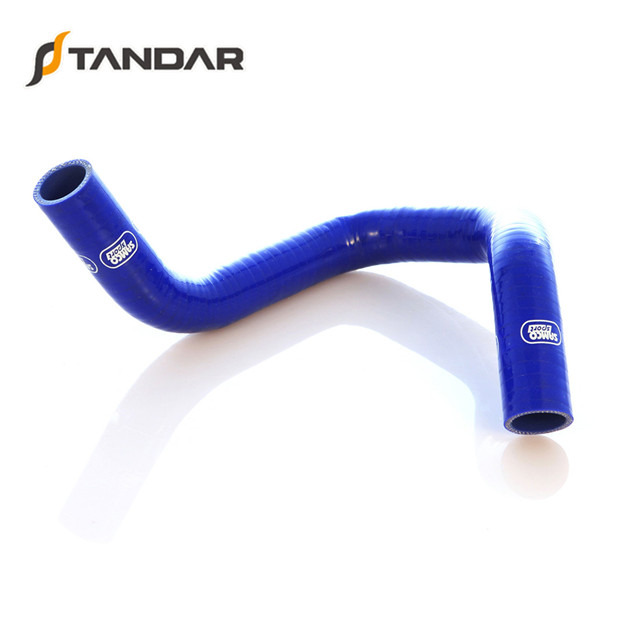

Heater System Blue Green Cooling Flexible Customized Special Shape Silicone Tube

300.0 Meters
MOQ
Heater System Blue Green Cooling Flexible Customized Special Shape Silicone Tube
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: Custom Silicone Hose
Processing Service: Moulding, Cutting
Type: Custom Silicone Hose
Material: 100% Virgin silicone materials (Inner & Cover)
Reinforcement: 3-4ply Polyester/Aramid/Glass fiber
Surface: Smooth or Cloth
Color: Blue, black, red, etc (Inner lining can adopt different colors)
Wall Thickness: 4-6mm, or as request
Length: as request
Working pressure: 2.67 Bar to 5.33 Bar
Working temperature: -50℃ to +260℃ (-58℉ to 500℉
Application: Cooling Heater System
Основная информация
Model Number: Custom Silicone Hose
Оплата и доставка Условия
Supply Ability: 1000 Piece/Pieces per Week
Характер продукции

Colorful High Temperature Flexible Hump Silicone Hose

1.Specification:

Type: Hump Silicone Hose
Engine Type: Cooling System
Material: 100% Virgin silicone materials (Inner & Cover)
Reinforcement: 3-4Ply Polyester
Surface: Smooth or Cloth
Color: Blue, black, red, etc (Inner lining can adopt different colors)
Wall Thickness: 4-6mm, or as request
Length: 76mm, or as request
Size Tolerance: 0.5 mm
Logo: STANDARDS, or as request
Working Temperatures: -50℃ to +260℃ (-58℉ to 500℉)
Polyester braid reinforced:
Working Pressure: 2.67 Bar to 5.33 Bar
Bursting Pressure: 8.00 Bar to 16.00 Bar

2.Characteristics & Remark :

Characteristics:
Made of High Temp Reinforced Silicone
Meet or exceed SAEJ20 standard
Easy to replace, cut, and adapt to your piping needs.
Heavy wall design gives it the ability to handle extreme pressure
Ideal for heavy-duty pressure connections in hostile engine environments,
extreme temperatures and various pressure ranges where high performance levels are required
Remark:
Straight coupler silicone hose is compatible with water and anti-freeze such as coolant.
Straight coupler silicone hose is not compatible with fuel or oil.
For fuel and oil use, the hose needs to be lined with Fluoro Silicone.



3.Application :


Standards Rubber's straight coupler silicone hose is suitable for
Racing auto universal tube
For Turbo/Intercooler/Intake Piping
High-Performance racing vehicles,
Commercial truck and bus,
Cooling Systems,
Charge Air Systems,
Turbo diesel,
Marine,
Agricultural and off-highway vehicles,
So If you are looking for a cooling system straight coupler silicone hose,
our silicone hose is the way to go.





4.Technical Data :

INNER DIAMETER WALL THICKNESS REINFORCED LAYER WORKING PRESSURE BURSTING PRESSURE
MM MM BAR BAR
30 4-5 3-Ply Polyester 5.33 16.00
32 4-5 3-Ply Polyester 5.17 15.50
35 4-5 3-Ply Polyester 5.00 15.00
38 4-5 3-Ply Polyester 5.00 15.00
41 4-5 3-Ply Polyester 4.83 14.50
45 4-5 3-Ply Polyester 4.67 14.00
48 4-5 3-Ply Polyester 4.50 13.50
51 4-5 4-Ply Polyester 4.50 13.50
54 4-5 4-Ply Polyester 4.33 13.00
57 4-5 4-Ply Polyester 4.33 13.00
60 4-5 4-Ply Polyester 4.17 12.50
63 4-5 4-Ply Polyester 4.00 12.00
65 4-5 4-Ply Polyester 3.83 11.50
68 4-5 4-Ply Polyester 3.67 11.00
70 4-5 4-Ply Polyester 3.50 10.50
76 4-5 4-Ply Polyester 3.50 10.50

About Us

Shijiazhuang Standards Rubber Products Co., Ltd is a highly professional and
experienced manufacturer of auto silicone hose in China.
We have specialized in this field for over 7 years and always dedicated to
the producing of auto silicone hose in high quality, with a wide range of demands,
mainly producing automotive silicone tubes.
Standards' Line of Silicone Hose Products is used in coolant and high-temperature applications.
The hose products are available for turbo and charge air coolers in straights and in formed hoses for engines.

Business Scope

1.Meter Straight Silicone Hose
2.Straight Coupler Silicone Hose
3.Straight Reducer Silicone Hose
4.Elbow Silicone Hose
5.180° Elbow Silicone Hose
6.Reducer Elbow Silicone Hose
7.Hump Silicone Hose
8.T-shape Silicone Hose
9.Vacuum Silicone Hose
10. OEM Custom Silicone Hose
11.SS Clamps



Why Choose Us
1. Our chairman, who came from a technical background,
has devoted himself to the silicone industry since the year 2012.

2. Professional R&D team with rich experience.
3. Only the best raw materials are natural silicone from Europe and American.
4. Only the most advanced equipment and skilled technical workers.
5. Only the best processes and strict inspection.
6. Efficient sales team with satisfying service.
7. We sincerely welcome partners all over the world to visit us for a win-win.


Packaging
Packing Details: The general package of our products is a carton or woven bag
We can also provide special packages according to customer's requests.





Shipping
Shipping by sea/air /courier (FedEx /DHL/TNT/UPS/China Post)according to your requests.
Sending the goods to your Chinese agent's warehouse is also workable.
